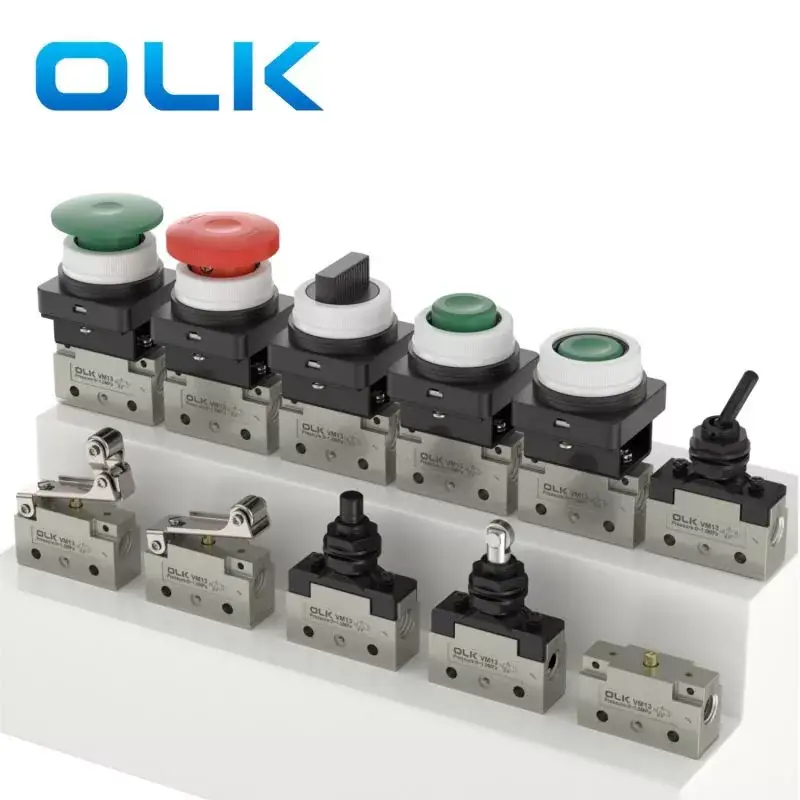

Ouleikai (OLK) VM series SMC-type mechanical button valves are available in two functional types: 2-position 2-way and 2-position 3-way. The air inlet and outlet ports come in two interface types: side and bottom. The thread sizes for the ports include M5, G1/8, and PT1/4.
- Basic (VM131-01-00)
- Roller (VM131-01-01)
- Single-direction Roller (VM131-01-02)
- Mushroom Button (VM130-01-30)
- Extended Head Button (VM130-01-32)
- Flat Head Button (VM130-01-33)
- Emergency Stop Button (VM130-01-37)
- Knob (VM130-01-34)
- Basic (VM230-02-00)
- Roller (VM230-02-01)
- Mushroom Button (VM230-02-30)
- Extended Head Button (VM230-02-32)
- Flat Head Button (VM230-02-33)
- Emergency Stop Button (VM230-02-37)
- Knob (VM230-02-34)
- Push Rod Type (VM132-M5-05)
- Impact Type (VM132-M5-06)
- Rocker Arm Type (VM132-M5-08)
- Basic (VM133-M5-001)
- Roller (VM133-M5-01)
- Single-direction Roller (VM133-M5-02)
- Mushroom Button (VM132-M5-30)
- Extended Head Button (VM132-M5-32)
- Flat Head Button (VM132-M5-33)
- Emergency Stop Button (VM132-M5-37)
- Knob (VM132-M5-34)
The buttons are available in four colors: Red, Green, Black, and Yellow.|
VM100 |
VM200 |
|
|
working medium |
Air/ inert gas |
Air/ inert gas |
|
Action |
External Control Direct Action |
External Control Direct Action |
|
Port diameter |
Side:G1/8 bottom:M5X0.8 |
PT1/4 |
|
number of positions |
2 position3 way |
2 position3 way |
|
lubricating |
unnecessary |
unnecessary |
|
Working pressure range MPa(psi) |
-0.1∼1.0 |
-0.1∼1.0 |
|
Working temperature °C |
-5∼60 |
-5∼60 |
|
Body material |
aluminum alloy |
aluminum alloy |
|
Effective cross-sectional area（CV) |
2.5 mm²（0.14） |
19 mm²（1.0） |
